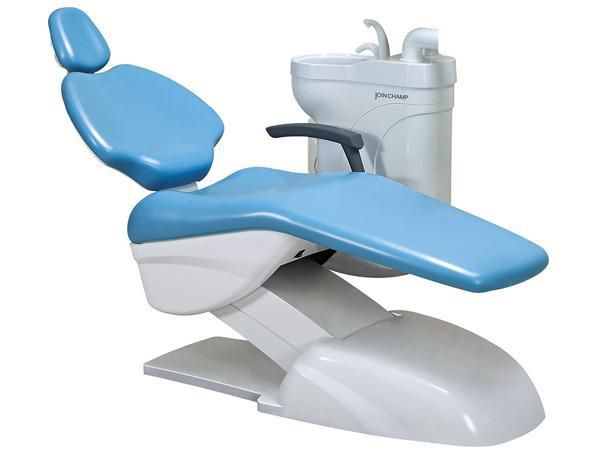

ZC-9200A Dental Chair Package

ZC-9200A Dental Chair Package
The ZC-9200A dental chair package is an economical but practical health care device developed by us in the year of 2002, and it has been highly praised by worldwide dentists since releasing to the market. After years of improvement, this product becomes an indispensable device in dental clinics.
Features
  • The patient chair is only 38cm in height, and the backrest is able to move in a fast way so as to get to the desired position quickly.
  • The handpiece holder is large, and it provides operators with simple access to handpieces, while offering perfect protection for the handpieces as well.
  • The foot pedal of our dental chair package combines different functions together to make dentists control our product easily. For example, it could finely adjust the patient chair’s position, control the status (on/off) of handpieces, mouth rinsing water and cuspidor flushing water, etc.
  • The operating light can be set at three lighting levels, and it will be turned off automatically if it moves back to the original position. In this way, dental surgery will be conducted in a more efficient way.
Manual Download
Request a Quote
  • Details
  • Standard and Optional
  • More Info
  • Related Products
Details
  • ZC-9200A Dental Chair Package

  • The unit body is made from special material, so it won’t discolor as time goes by. Very easy to clean and maintenance.

  • ZC-9200A Dental Chair Package

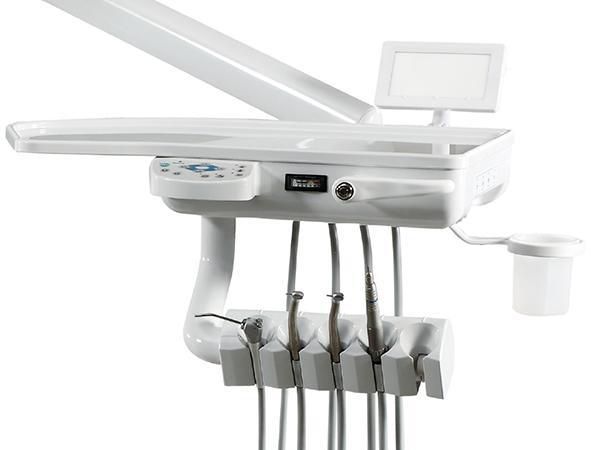

  • For this dental chair, the handpiece holder is of tilt design to facilitate operations when a handpiece is needed. So, handpieces won’t drop down onto the floor. Moreover, this dental chair package has a small waste container to temporarily place cotton balls and other waste generated during operation.

  • ZC-9200A Dental Chair Package

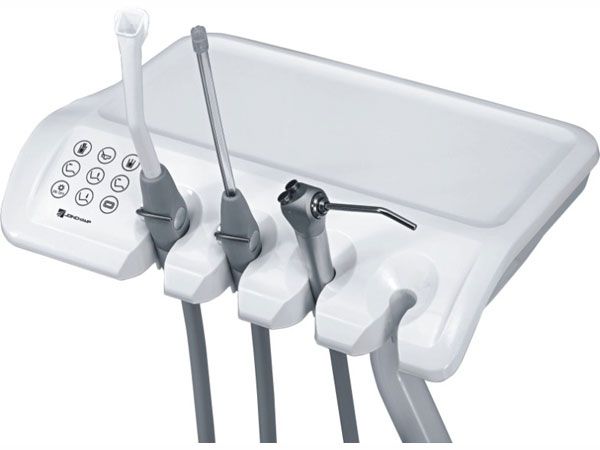

  • No-sticker integrated assistant control
    1. Prevent the liquid from entering the circuit board through the gap of the sticker, improving the reliability of the circuit. Side handle makes operation easier.
    2. The strong suction and saliva ejector can be turned off with a delay of 5 seconds to ensure that the dirt in tubes is completely drained.
    3. The strong suction and saliva ejector handles are made of a combination of aluminum alloy and silicone, light weight and good sealing, can be removed for cleaning and disinfection. The flow can be adjusted by the handle flow switch.

  • ZC-9200A Dental Chair Package

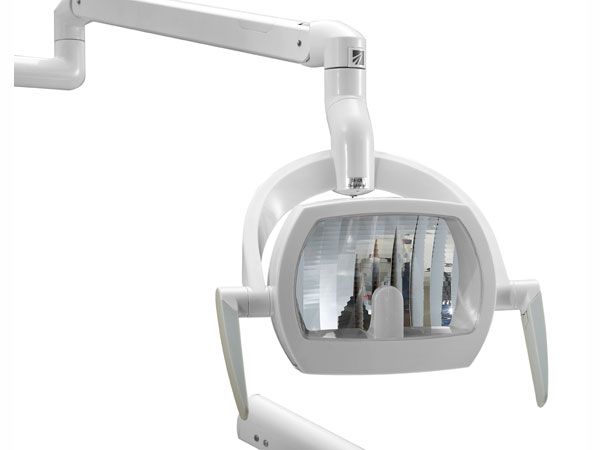

  • LED operatory light
    LED operatory light has three-axis rotation, manual switch and infrared sensor switch, which can control the on-off and adjust the intensity. The handle can be disassembled, cleaned and disinfected. Vertical distance of the light arm is 700mm.

  • ZC-9200A Dental Chair Package

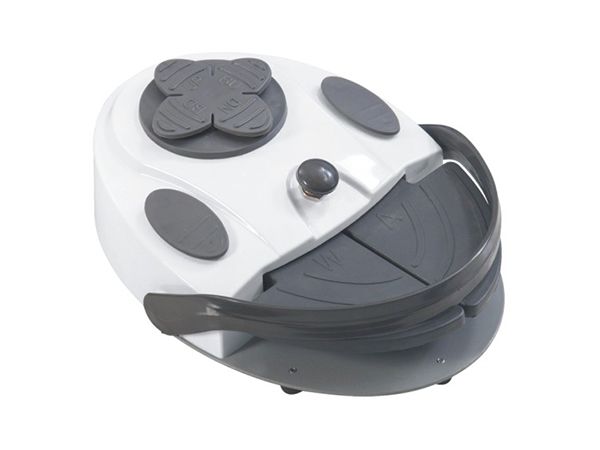

  • Multi-functional foot control

  • ZC-9200A Dental Chair Package

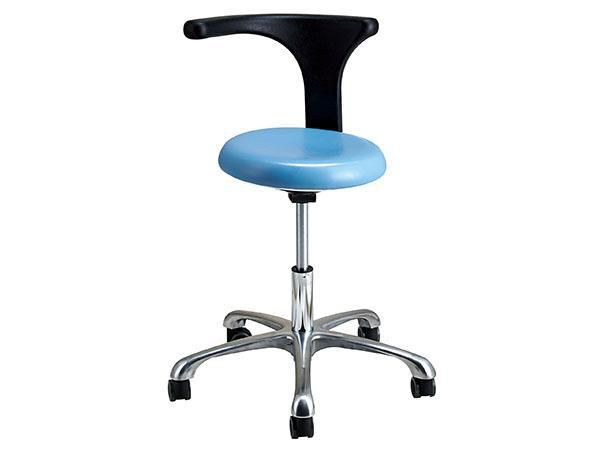

  • Dental stool: With the height being adjustable

Standard Configuration
Dental equipment operating unit
  • Handpiece tubing: 3 pieces
  • Pressure gauge
  • 3-way syringe: 2 pieces (cold & warm)
  • External 24V X-ray viewer: 1 set
  • Waste container, paper cup holder, tissue box and trinket tray
  • Saliva ejector (water) and high volume evacuator (air)
  • Seamless cuspidor bowl made from hard ceramic
  • Cold light lamp: 3 luminance levels
  • Anti-retraction system
  • Assistant control panel box (No keyboard)
  • Purified water bottle: 1 piece
Dental chair
  • Seamless PU seat with backrest and headrest: 1 set
  • Silent motor: 2 pieces
  • Fast recovery system for backrest
  • Foot pedal that realizes rinsing (for mouth) and flushing (for cuspidor) functions
  • Patient chair with single armrest
  • Dentist stool: 1 set
Optional Device
  • Top-mounted instrument tray
  • Control system for cart
  • Natural leather patient chair with backrest and headrest
  • Scaler
  • Curing light
  • Intra-oral camera system
  • Monitor bracket
  • Built-in junction box
  • Patient chair with double armrests
  • High-speed air turbine handpiece
  • Low-speed air motor handpiece
  • Double armrests
  • Fiber optic handpiece tube (with light)
  • Faro operation light
More Information
Technical Parameters
  • Power supply: 230V, 50Hz
  • Air source pressure: >0.55Mpa
  • Water source pressure: 0.2-0.4Mpa
Upholstery color
Upholstery Color
