The steam autoclave N is capable of conducting disinfection treatment for surgical instrument, dental appliance, surgical dressing, laboratory glassware, injection device and other autoclavable instruments. It is primarily used in operating theaters, dental rooms, ophthalmology departments and biomedical research institutes.
Our product is in accordance with European standard for class N sterilizer, and it realizes thermal vacuum and preliminary drying functions. In general, this device is applicable for solid load and type A hollow load.

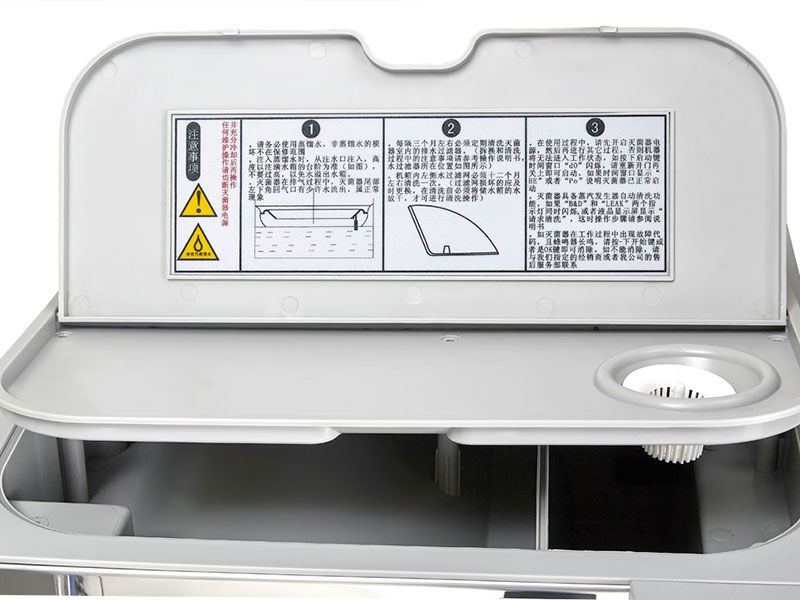

This medical sterilization equipment has an open-type water tank that conforms to European standards and allows daily cleaning.
Our steam autoclave works on the basis of internationally advanced steam sterilization techniques, and the disinfection result is very assuring.

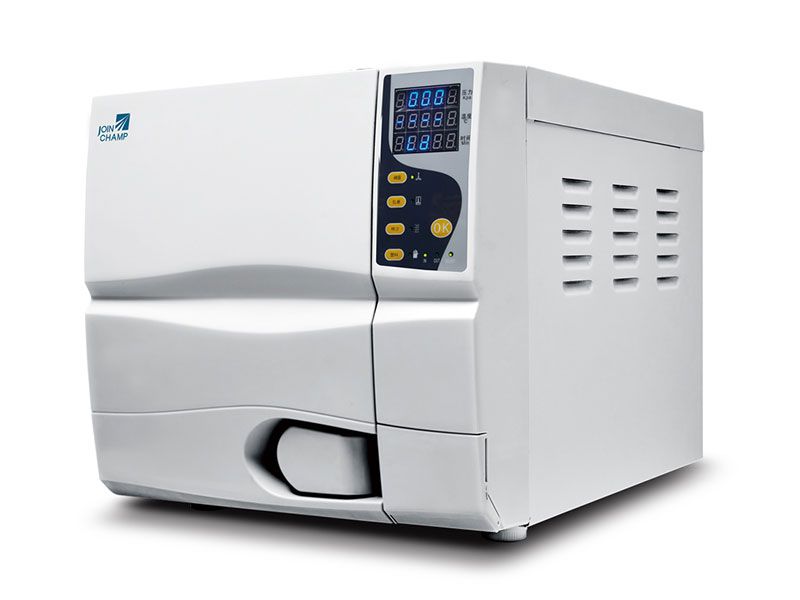

The LCD windows are designed to reveal pressure, temperature and time of the sterilization process respectively. The operation panel is easy to use, while date, time and other information can be set by the user.
The fully automatic pneumatic lock mechanism is a new generation product to work instead of manual type, and the operation is much easier.
Due to the preheat button, the temperature inside the sterilization chamber is always maintained at 70°C or so. As a result, less time is needed for the chamber to reach the desired sterilization temperature, thus cutting down cycle time.
The stainless steel liner is manufactured through stretch forming. It has a beautiful appearance, while crack and water leakage are both avoided.

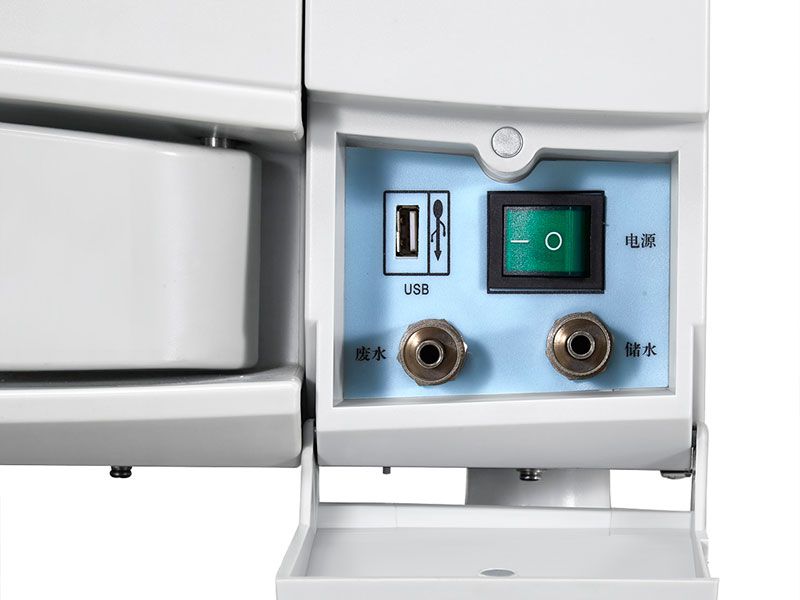

Our steam autoclave is able to connect with an external water distillation system for the purpose of automatic water fill, and it can be directly connected with drainage pipes as well so as to discharge remaining water automatically.
This N-cycle sterilizer is scientifically designed to deliver outstanding performance in an extremely safe way. So, safety consideration is also one of our major concerns.
a. For the sterilization chamber, air must be removed so as to get better disinfection results. So, if the door is opened during sterilization process, no matter it is intentionally or by mistake, explosion will take place if you are not lucky enough, and this is resulted from the pressure difference. Accordingly, instruments or supplies inside the chamber will be destroyed.
Given this, our type N steam autoclave adopts double lock mechanisms, including manual type and pneumatic type, to avoid damages caused by misoperation.
b. On the other hand, the temperature values of steam generator, inner and outer sides of chamber are all monitored to make sure that instruments inside won’t be damaged as a result of high temperature.

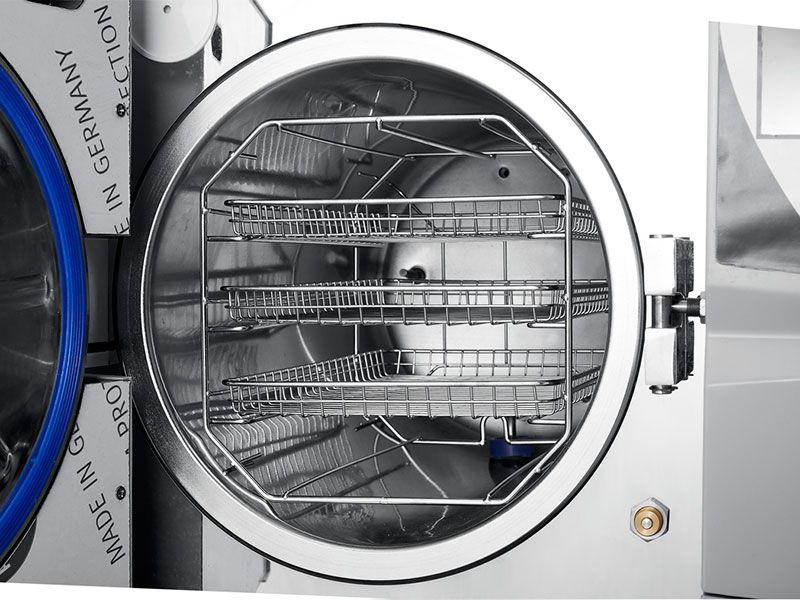

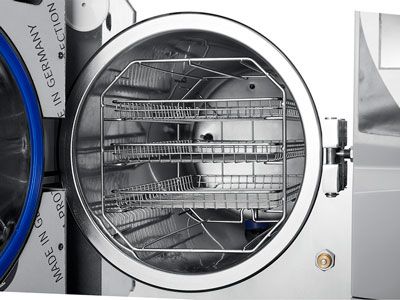

Serveral shelves can be stacked vertically on the stainless steel shelf rack to hold the instruments to be disinfected.
The liner of sterilization chamber undergoes special surface treatment to create a bright and hermetic protection layer. So, a clean working environment is provided inside the chamber, and the instruments won’t be influenced by rust.

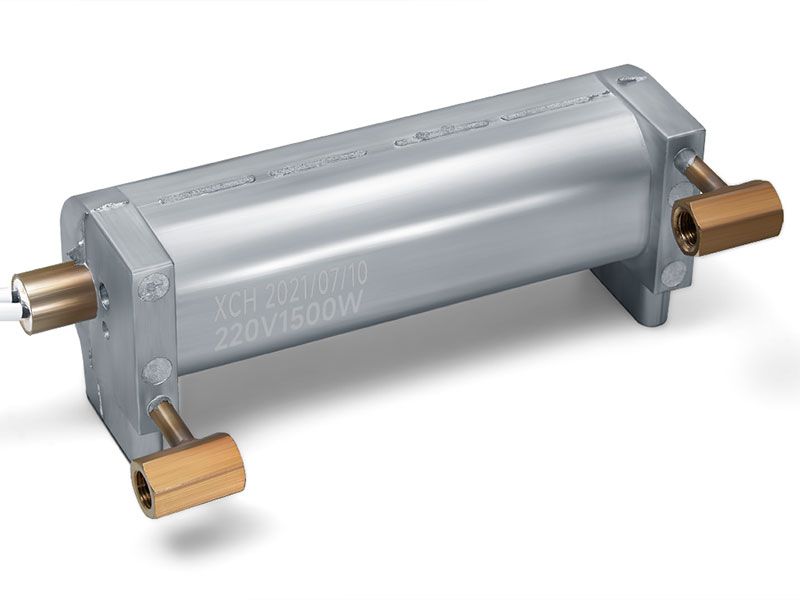

For this steam autoclave, the control system makes use of intelligent fuzzy control technology to automatically check failures, thus alleviating maintenance work. The microcontroller is provided by Atmel Corporation, and it features high capacity, fast data processing speed and reliable performance. Moreover, it could automatically check the water quality, which in return prolongs the service life of steam generator.
As mentioned before, manual and pneumatic lock mechanisms are both adopted to thoroughly eliminate potential danger that is often caused by a single manual lock mechanism.

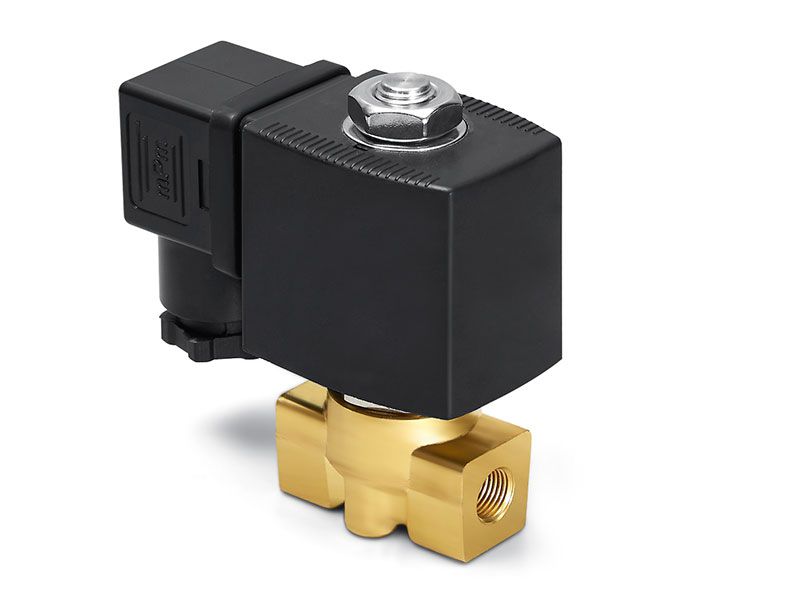

The solenoid valve is imported from Italy, and it possesses more stable quality when compared with similar components. In addition, its expectable life is over 4 years.
Our steam autoclave is equipped with imported high precision water pump and stainless steel temperature sensor in order to control the temperature in a more accurate way.
