ZC-S700 Dental Chair Package

ZC-S700 Dental Chair Package
ZC-S700 Dental Chair Package ZC-S700 Dental Chair Package ZC-S700 Dental Chair Package

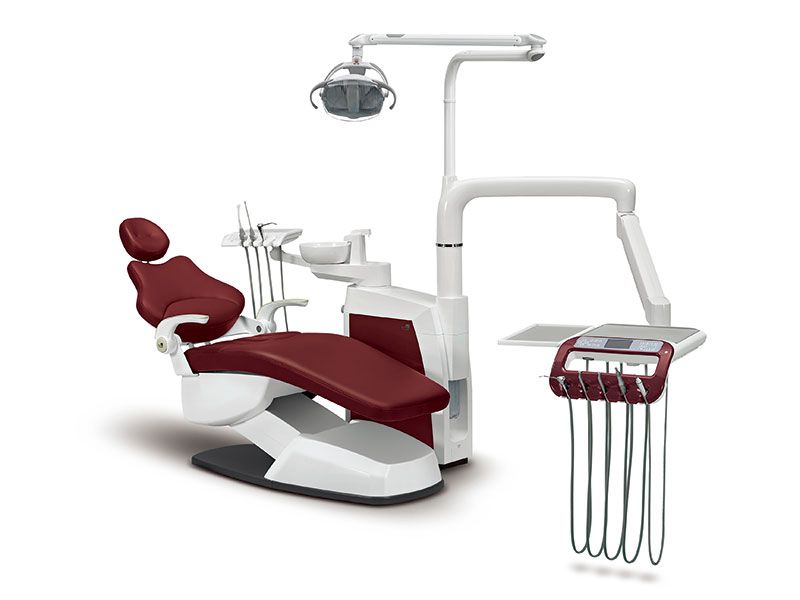

ZC-S700 integral dental unit is designed ergonomically and modernly. It's elegant and with great attention to details. It's the first floor type unit of Joinchamp brand. Thick chair base with imported steel frame makes S700 one of the most stable units among our products.

Request a Quote
Features
  • The floor-type unit body ensures stability of the whole dental unit.
  • The Italian FARO operating lamp and articulated arm features accurate positioning, concentrated light, light weight and flexible movement.
  • Comfortable for rest on: This dental chair is designed with a unique structure, which is stable and comfortable, ensuring patient comfort.
  • Convenient to use: This control panel of this dental unit is tilted, making it easier for dentists to control. It is an LCD screen, offering a clear display of the operating status.
  • Exquisite craftsmanship: The housing on the dental chair unit is made using injection molding technology, which ensures the housing is uniformly jointed and easy to clean.

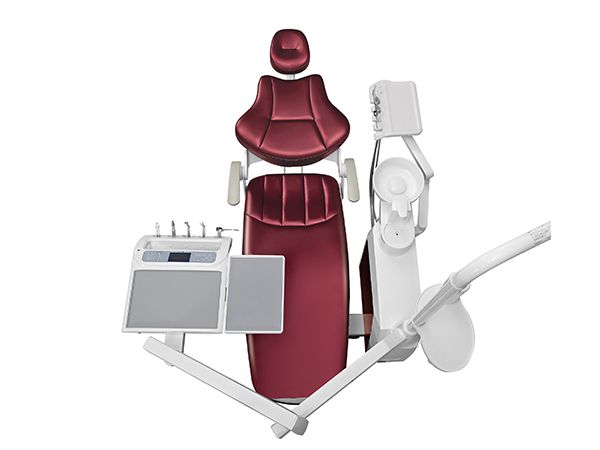

  • The dental chair package is designed with unique structure, which follows the curvature of the human back to ensure the backrest remains close to the patient, and offer additional patient comfort.
  • This dental unit has nine recorded seat positions set through easy programming to be suitable for different treatment positions and save treatment time.
  • There are waterpipes disinfection and flushing system, which helps to prevent cross-infection.
  • The main parts are imported. Unit box and cuspidor bowl are rotatable. And it has new designed assistant table with comfortable leather upholstery.
  • Details
  • Standard and Optional
  • More Info
  • Related Products
Details
  • ZC-S700 Dental Chair Package

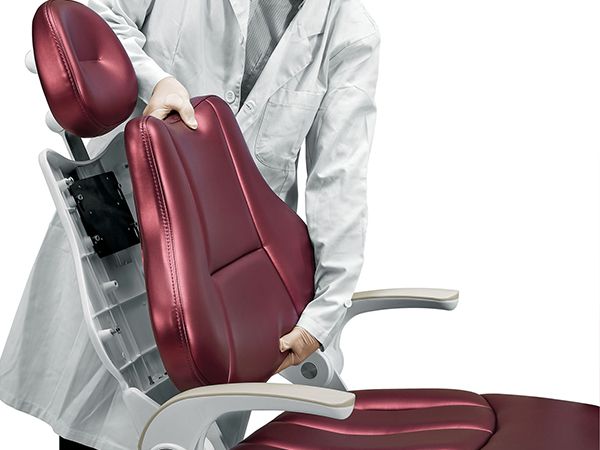

  • The backrest of the dental chair is covered with high-grade leather, which supports patients and brings extra comfort to patients.

  • ZC-S700 Dental Chair Package

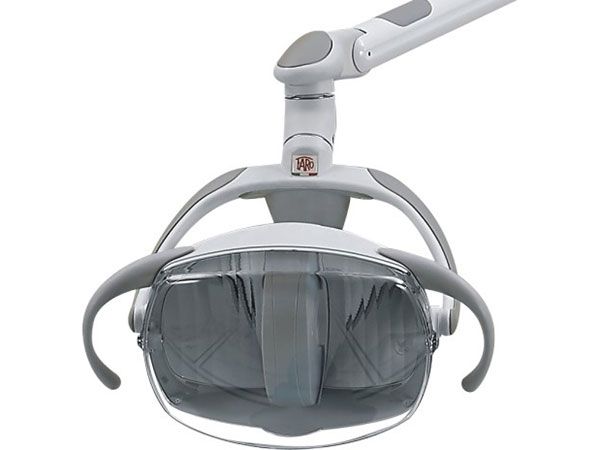

  • The Italian Faro Led surgical light and light arm feature accurate positioning, concentrated light, light weight and flexible movement.

  • ZC-S700 Dental Chair Package

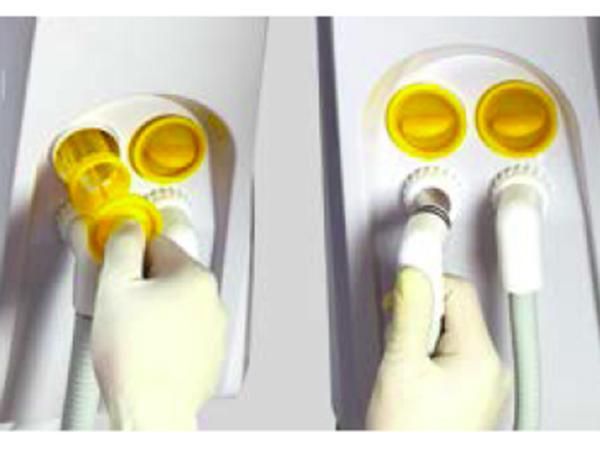

  • The external oral saliva ejector is convenient to clear and disinfect to prevent cross-infection.

  • ZC-S700 Dental Chair Package

  • Add 3% hydrogen peroxide into disinfection, make sure after a surgery the waterpipes in doctor table are disinfected and flushed thoroughly before next treatment. Time of sterilization can be set in 6, 12 or 17 minutes.

  • ZC-S700 Dental Chair Package

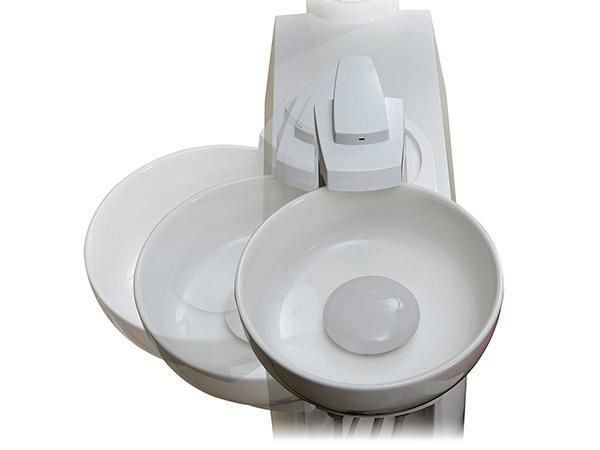

  • 90 degree rotary ceramic cuspidor can be moved away from the operation area, so it won't disturb dentist and assistant while operating.

  • ZC-S700 Dental Chair Package

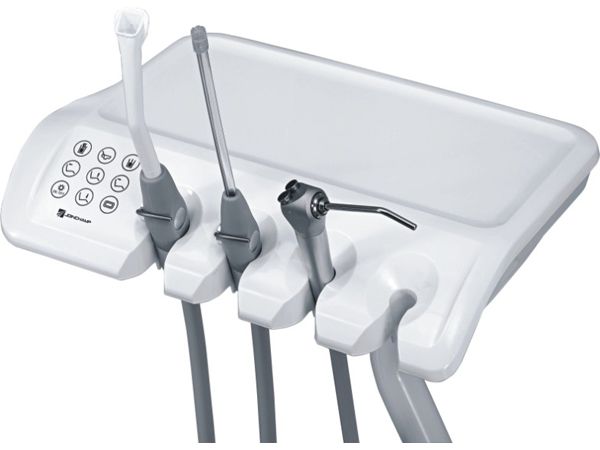

  • No-sticker integrated assistant control
    1. Prevent the liquid from entering the circuit board through the gap of the sticker, improve the reliability of the circuit. Side handle makes operation easier.
    2. The strong suction and saliva ejector can be turned off with a delay of 5 seconds to ensure that the dirt in tubes is completely drained.
    3. The strong suction and saliva ejector handles are made of a combination of aluminum alloy and silicone, light weight and good sealing, can be removed for cleaning and disinfection. The flow can be adjusted by the handle flow switch.

  • ZC-S700 Dental Chair Package

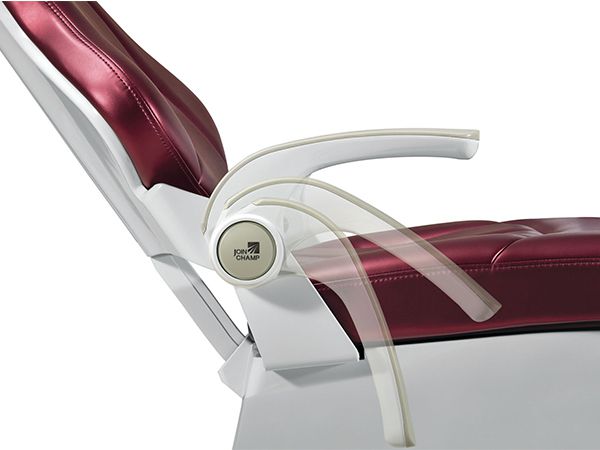

  • Intelligent armrest: The armrest will automatically lower with minimal force, which helps the patients to move flexible up and down

  • ZC-S700 Dental Chair Package

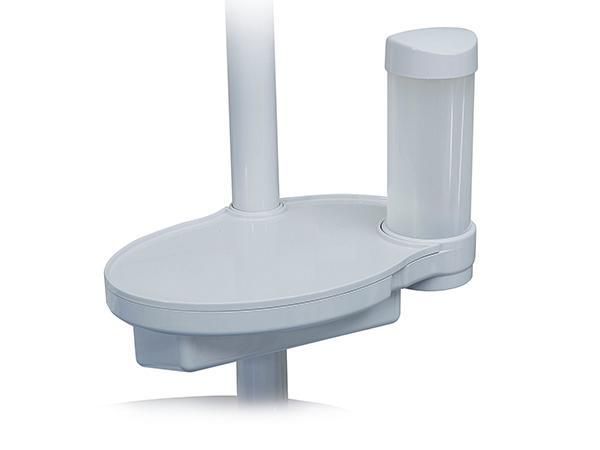

  • The unit is equipped with a cup filler, tray and tissue box, all to facilitate patient treatment. The cup holder is used for rinsing patient mouths, the tissue box for wiping any fluids, and the tray is used to hold keys, cell phones and other objects.

  • ZC-S700 Dental Chair Package

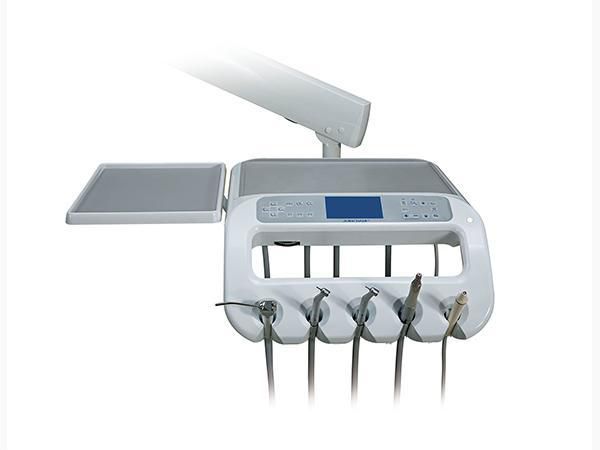

  • The slim design of hanging type doctor table compresses the weight to the extreme and makes the operation more flexible. Tilted panel brings more convenience to pick and place instruments. LCD screen reflects the status of the device more intuitively. Upgradeable touch screen is optional.
    1. ZC-S700 has a handpiece holder arm with hidden air-locked valve. The height of delivery unit can be adjusted according to your preferences.
    2. The carefully designed handpiece holder arm features flexible movement with easy pull-out and push-back, allowing for maximum movement without handpiece falling. 3. The handpiece pad can be dismantled for high-temperature disinfection and cleaning.
    4. The stainless steel tray can be dismantled for easy clean and disinfection.

  • ZC-S700 Dental Chair Package

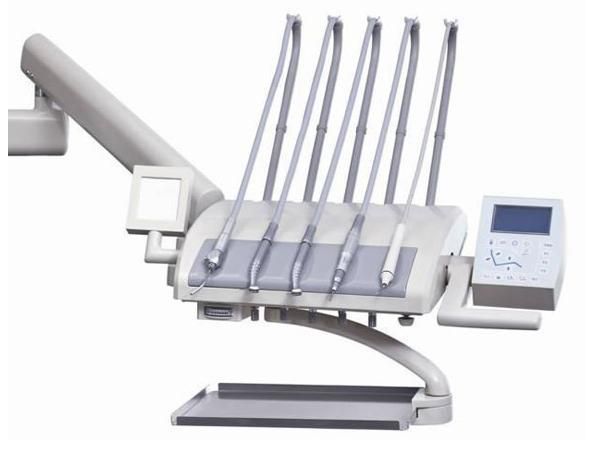

  • Top-mounted doctor table is optional
    1. Handle is designed with hidden air-locked valve, the height of the table can be adjusted as needed.
    2. The meticulous design makes the rods to be pulled out and put back easily without any resistance force. The wonderful structure allows a maximum movement of handpieces. At the same time avoid fall of the handpieces and give dentists a comfortable operation experience.
    3. Handpiece pad is detachable and can be clean & sterilized.
    4. Removable stainless steel trap is easy for clean and disinfection.

  • ZC-S700 Dental Chair Package

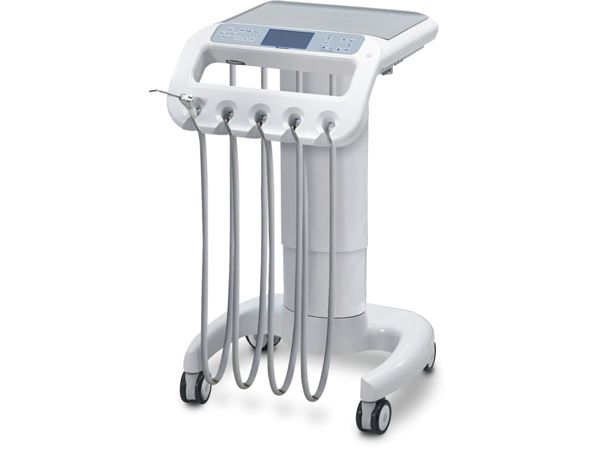

  • Trolley-type doctor table (optional)
    1. Trolly-type doctor table reduces the burden of the whole dental unit and makes the chair more stable, eliminates the oppressive feeling from patients caused by instrument arm.
    2. The base adopts aluminum alloy die-casting technology to improve the structural stability without deformation and rust.
    3. Tiling design of key board is more user-friendly and good for accurate operation.

  • ZC-S700 Dental Chair Package

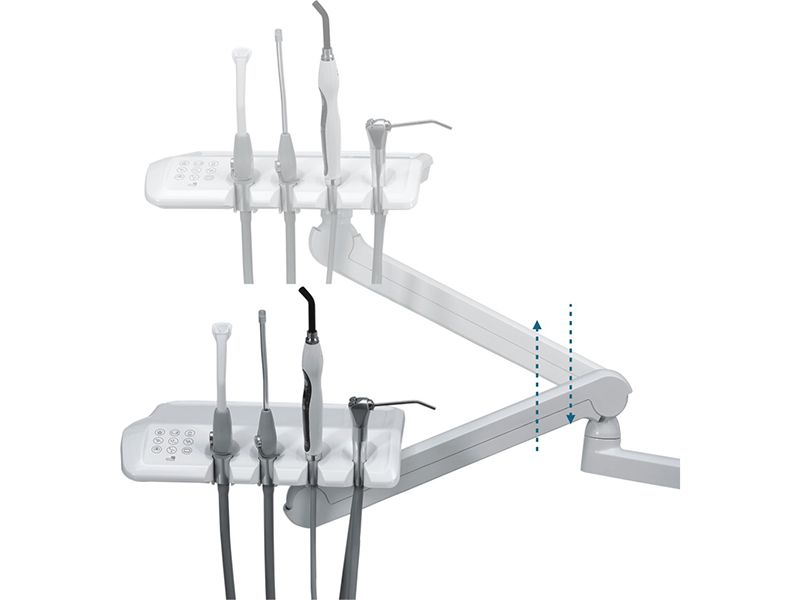

  • Assistant table arm with large-angle rotation and vertical movement
    5 levels of height adjustment, each level is about 7cm, so the span is about 35cm. The design principle of the parallelogram makes the arm more flexible and stable. The connecting arm - horizontal arm - spring arm - assistant control box, the design of 3 movable joints is more handy and practical (the horizontal arm can be rotated at a 180° angle, the spring arm-300° and the assistant control box-90°).

  • ZC-S700 Dental Chair Package

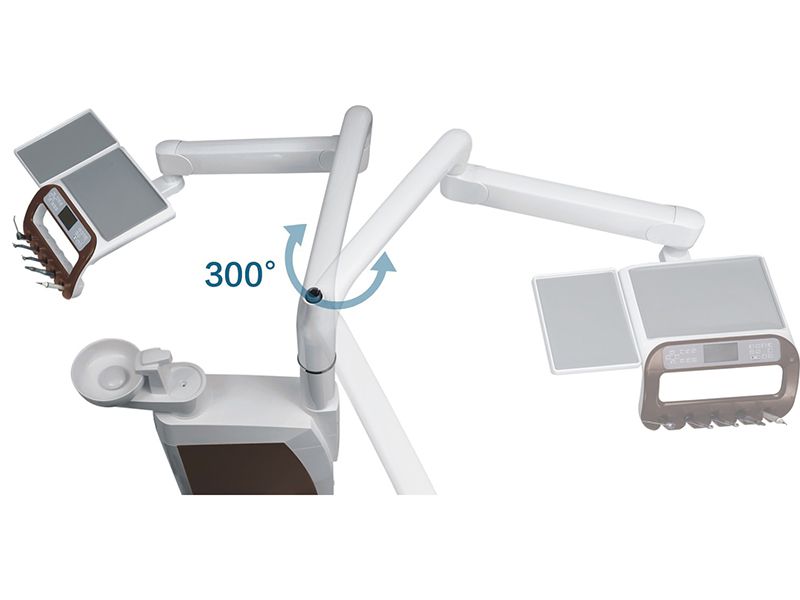

  • Instrument arm with large rotation angle
    The rotating arm of the doctor table can be rotated forward and backward up to 300°, convenient for left-handed operators. It can be used as an assistant table and eliminate the oppressive feeling from patients.

Standard accessories
Dental equipment operating unit
  • Imported handpiece tubing: 3 pieces
  • Pressure gauge
  • 3-way syringe: 2 pieces (cold & warm)
  • External 24V X-film viewer: 1 set
  • Control system with LCD display: 1 set
  • Deluxe saliva ejector (water) and powerful suction (air)
  • Seamless rotatable ceramic cuspidor bowl
  • Faro EDI operation light originally from Italy/ LED-I light (16 light bulbs)
  • Anti-retraction system
  • 9 keys deluxe larger assistant control panel
  • Cup filler/ tray/ tissue box
  • Purified water bottle/ Disinfectant bottle: 1 piece each
  • Floor mounted unit box: 1 set (match with different colors)
  • All inner air and water tubings are from USA
  • Built-in injecting water purified system
  • Stronger chair metallic frame and thicker metallic chair base
Dental chair
  • Deluxe thick leather seat with backrest and headrest: 1 set
  • Imported silent high-speed motor: 2 pieces
  • Nine recorded seat positions by programming
  • Compensating system for interaction
  • Multi-functional foot pedal
  • Patient chair with double armrest
  • Dentist stool: 1 set
  • Assistant stool: 1 set
Optional Device
  • Top-mounted instrument tray
  • Control system for cart
  • Electrial motor handpiece
  • Scaler
  • Curing light
  • Intra-oral camera system
  • Monitor bracket
  • Built-in junction box
  • High-speed air turbine handpiece
  • Low-speed air motor handpiece
  • Control panel with 7-inch touch screen
  • Fiber optic handpiece tube (with light)
More Information
Technical Parameters
  • Power supply: 230V, 50Hz
  • Air source pressure: > 0.55 MPa
  • Water source pressure: 0.2-0.4 MPa
Upholstery color
  • F049
  • F079
  • F172
  • F205
  • F354
  • F496
  • F542
  • F581
  • F707
  • F715
